Bulk Containers PDF

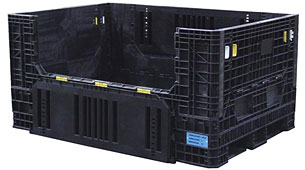

HDR7048-34

Model HDR7048-34
Footprint 70x48x34
Length 70
Width 48
Height 34
Truckload Assembled 51
Truckload Collapsed 136
OutLength 70.0
OutWidth 48.0
OutHeight 34.0
InLength 66.4
InWidth 44.5
NestRatio 2.6:1
Weight 228.0
Static 4 high
Dynamic 3 high


Extended-length containers accommodate long and hard-to-fit components and parts. The BulkPak® 7048 HDR Series accommodates long and hard-to-fit component parts. All containers are structural-foam molded in high-density polyethylene for durability and are available in side-loading Maximus styles. Unitized loads can be delivered directly to the assembly line for immediate part presentation, with no unwrapping or unbanding. Bulk containers collapse when empty for reduced return transportation costs and warehouse space savings. During storage and shipping these bulk bins stack securely atop each other. Palletboxes offer the strength and rugged durability demanded in todays material handling and distribution systems. Custom protective dunnage is available for all of our BulkPak containers. These plastic containers are fully recyclable at the end of their service life. (All dimensions and specifications are approximate. Performance characteristics are based on uniform static loads and may be affected by distribution of load, handling methods, number and type of access doors and temperatures beyond the range of 0 to 120 degrees Fahrenheit.)

  • 70" x 48" x 34" footprint
  • Areas on all four sides for identification options
  • Container capacity: 1500 lbs
  • Access doors: 0, 1 or 2 doors available on 70" side
  • Deck: Closed
  • Sidewalls: Solid
  • Base: All-plastic picture frame bottom with rounded legs for easy fork truck handling and reduced risk of “short forking”
  • Articulated door hinge allows doors to stay flat when open
  • Wing-wall door style available
  • Popular applications: Automotive, appliance and transportation equipment
